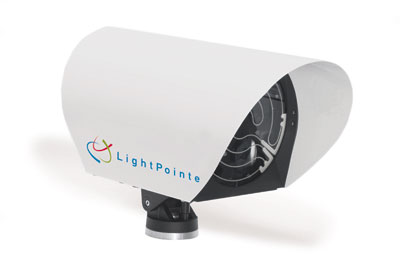

The FlightStrata takes the proven multiple-beam technology of LightPointe to the next level. The FlightStrata's new optical transmitter and receiver lens layout enables greater performance in many deployments through improved link margin, while Optical Beam Shaping (OBS), in conjunction with Automatic Power Control (APC) delivers performance to address changing atmospherics and building movement.

The FlightStrata system transmits four redundant beams of light that overlap and adjust when needed through Multi-Beam Array Tracking (MBAT) technology. The combination of rotational optics, MBAT and APC means even greater link margins, which translate into improved performance. The FlightStrata is available in four models: The FlightStrata 52 and FlightStrata 155 provide bandwidth of 52 Mbps and 155 Mbps and are recommended for distances up to 2000 meters, while the FlightStrata 52E and FlightStrata 155E are rated for distances up to 4000 meters.

To learn which product is right for you, please contact us. A professional will be happy to provide a network FSO link analysis so you can begin experiencing the benefits of FSO through increased bandwidth and lower overall network operation costs. The FlightStrata is the flagship of our Flight Optical Transport family, the same FSO gear that is deployed by more major Carriers and Enterprises than any other company. We are pleased to introduce the FlightStrata and its many new performance features with only minimal additional costs. To learn more about FlightStrata, contact one of our sales professionals or Partners throughout the world.

Outdoor Unit

FlightStrata 52, 52E, 155, 155E

Description

Multiple Beam System with Auto Tracking

Dimensions (WxHxL)

321 x 297.5 x 620 mm (12.6 x 11.7 x 24.4 in)

Unit Weight

11.1 kg

Shipping Weight

26.4 kg (58 lbs) x 1 linkhead

Operating Voltage

90 to 240 V (50/60 Hz)

Operating Temperature

-25 C to 60 C (-13 F to 140 F)

Humidity Range

Up to 95% non-condensing

Power Consumption Max.

20 W

Immune to EMI & RF Interference

Yes

Built-in Alignment Telescope

Yes

Built-in Micro Defroster

Yes

FREE SPACE

Bit Rate

FSA 52, FSA 52E: 1.5 to 52 Mbps

FSA 155, FSA 155E: 1.5 to 155 Mbps

Recommended Distance

FSA 52, FSA 155: Up to 2000 meters

FSA 52E, FSA 155E: Up to 4000 meters

Optical Transmitter

VCSEL

Wavelength

850 nm

Optical Receiver

Si APD

Receive Power Indicator

10-level bar graph

Status Indicators (LED)

Power,TX Data,LOS,Overload

MULTIMODE FIBER INTERFACE

Protocol

Transparent

System Interface

SC connector

Wavelength

1270 to 1350 nm

Optical Receive Power

FSA 52, FSA 52E:

-30 to -15 dBm

FSA 155, FSA 155E:

-15 to -30 dBm

Optical Transmit Power

-20 dBm

SINGLEMODE FIBER INTERFACE

Protocol

Transparent

System Interface

SC

Wavelength

1270 to 1350 nm

Optical Receive Power

-8 to -25 dBm

Optical Transmit Power

-8 to -15 dBm

ELECTRICAL INTERFACE

Protocol

NA

System Interface

NA

MULTIMODE OPTICAL MANAGEMENT INTERFACE (OMI)FOR PC BASED OR SNMP MANAGEMENT

System Interface

SC connector

Wavelength

850 nm

CLASSIFICATION

IEC/EN 60825-1/A2

Class 1M
