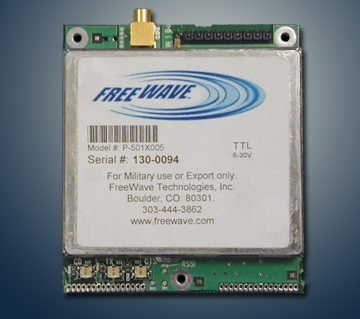

1.3 GHz Military
The family of military products are designed to meet the rigorous demands of military and government users worldwide. The military products share the same features as our 900 MHz M-Series, including 32 bit CRC error detection with automatic retransmission, 115.2 kbps throughput and single radio repeater and slave/repeater. Our military products provide reliable data communications in the most adverse environments. Radio Features Spreading Method: Frequency Hopping or Fixed Frequency | | Long Range: Up to 60 miles with clear line of sight. Easy Installation | Error Free Communications: 32 bit CRC with
automatic retransmission. | | Industrial Grade Specifications: 100% tested for full performance from -40°C to +75°C. | | Repeater and simultaneous Slave and Repeater function all in a single radio. | | RS232 or TTL Interface. | 6 to 30 Volt operating voltage | Noise Immunity: Superior performance in noise congested environments. | | Secure: proprietary spread spectrum technology prevents detection and unauthorized access. | | TDMA Available |
| Transmitter: | 1.350-1.390 GHz | Frequency Range | 1.350-1.390 GHz | Range, Line of Sight | 60 miles | Output Power | 1 Watt (5 Watt with external amplifier) | Modulation | GFSK, 2 levels | Occupied Bandwidth | 230 kHz | | Spreading Method | Frequency Hopping | | | | Receiver: | | Sensitivity | -110 dBm @ BER 10-6 | | Selectivity | -20 dB at fc ± 230 KHz | | -60 dB at fc ± 290 KHz | | Operating Voltage | 6 to 30 VDC | | Receive Current | 100 mA @ 12 VDC | | Transmit Current | 750 mA @ 12 VDC | | . | | Data Transmission: | | Error Detection | 32 bit CRC, Retransmit on Error | | Data Encryption | Substitution, Dynamic Key | | Maximum Throughput | 115.2 Kbps | | Data Interface | RS232 | | Data Connector | 10 pin header with locking ramp,
0.1 inch spacing power/data connector. | | | | General Information | | Operating Temperature | -40°C to +75°C | | Dimensions | 2.86" L x 2.44" W x 0.59" H | | Weight | 5 oz. | | Antenna Connector | Right angle MCX | | | | Amplifier | | Frequency | 1.350-1.390 GHz | | Output Power | 5 watts | | RF Input Power | 30 mW to 300 mW | | Transmit Switch Level | TDB | | Turn on Time | TDB | | 2nd Harmonic | -40 dBc | | 3rd Harmonic | -70 dBc | | Receive Gain | +14 dB | | Noise Figure | 1.5 dB maximum | | 1 dB Compression | -10 dBm | | Out of Band Signal Rejection | 40 dB | | Operating Voltage | 12 VDC± 10% | | Peak Transmit | 2 Amps @ 12 VDC | | Receive Current | 22 mA @ 12 VDC | | Temperature Range | -40°C to +75°C | | Options | *Output Power On/ Off switch (TTL level control voltage)
* Direct DC input (no diplexer needed) | | Included Accessories | Diplexer with attached 20 VAC to 12 VDC supply |
|
|
|
