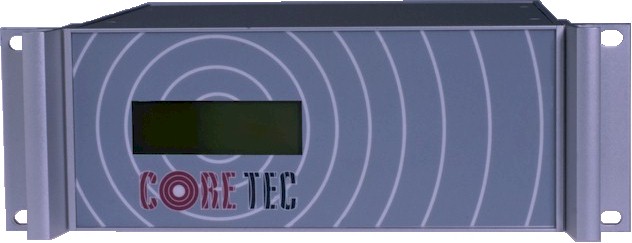

The VCS-1000 Series Digital Video Encoder/Decoder provides digitized and compressed video in a synchronous EIA-422 format from 48 kbps to 2.5 Mbps. It is suitable for use in a T-1, fractional T-1, E-1 or fractional E-1 environments. The VCS-1000 series products are easily connected to network equipment having high-speed synchronous data interfaces. The synchronous RS-422 data format also allows compatibility with most EIA-530 and V.35 interface equipment.

APPLICATIONS

• T1, fractional T1, E1, fractional E1 networks
• High speed digital backbones requiring low data rate digital video interface

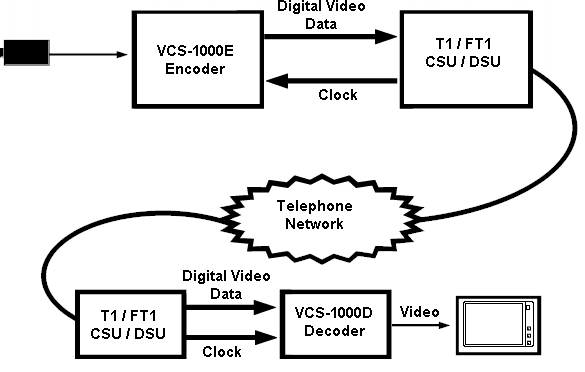

• Remote video surveillance over telephone network
• Highway/traffic monitoring
• Mass transit systems
• Telemetry
• OEM Interfaces

SPECIFICATIONS

VIDEO

Video Inputs (Encoder):

Format

          NTSC, PAL

          Y/C (S-VHS)

optional

Voltage

          .5 V - 1.2 V peak to peak (75 ohm)

Connectors

          BNC (NTSC, PAL)

          S-VHS (Y/C)

Video Outputs (Decoder):

Format

          NTSC, Y/C (S-VHS)-(simultaneous)

          R-G-B, PAL, SECAM

optional

Voltage

          1.0 V peak to peak (75 ohm)   (NTSC)

Connectors

          BNC (NTSC, PAL)

          S-VHS (Y/C)

          15-pin high density (R-G-B)

Data (Video):

Format

          EIA-422 synchronous

          EIA-530, V.35, compatible

Clock Rate

          48 kbps - 2.5 Mbps, externally clocked

          or selectable via RS-232 control port

Connector

          4 pin Phoenix type (removable)

Performance:

Resolution

          720 x 625 maximum (format dependent)

Frame Rate

          30 frames per second maximum

Compression:

Algorithm

           ITU-T H.261 (p x 64)

GENERAL

Data (Programming, Switching):

Format

          RS-232

Connector

         3 pin Phoenix type (removable)

Addresses

          128 maximum

Diagnostics:

         4 line X 20 character LCD display

         -- Data Rate

         -- Quality level

         -- Frame Rate

         -- Video Status, Board Temperature

Power Requirements:

         8-28 VDC (20w maximum)

         8-20 VAC

         110 VAC

optional

         220 VAC

optional

         -48 VDC

optional

Connector

         2 pin Phoenix type (removable)

Physical and Environmental:

Dimensions

         3.47" H x 8.37" W x 8.00" D

         (8.80 cm x 21.24 cm x 20.30 cm)

         Notes:

         1. 19" rack mount option (2U high)

         2. 2 units mount side-by-side

              in 19" rack mount

Weight

          3 pounds 2 oz.

Temperature

          -20º to +70º Centigrade

          (-4º to + 158º Fahrenheit)

Humidity

         0 to 95% non-condensing

ORDERING INFORMATION

VCS-1000E

Video Encoder

VCS-1000D

Video Decoder

ACCESSORIES

PCA-1000

Programming Cable assembly for VCS-1000 Series

PS-1000

Power Supply for VCS-1000 Series

SW-1000

User Interface Software for VCS-1000

VCS-EB

Extender brackets for single unit 19" mounting (per pair)

IC-1000-V35

V.35 Interconnecting Cable

IC-1000-530

EIA-1000-530 Interconnecting Cable

OPTIONS

"-1"

110 VAC Powered

"-2"

220 VAC Powered

"-4"

-48 VDC Powered

"-RGB"

RGB Output from Decoder (Suffix used on Decoder Only)

"-SV"

SVHS Input on Encoder (Suffix used on Encoder Only)
