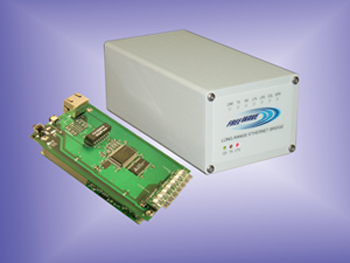

FGRHT 900 MHz Spread Spectrum Ethernet Radios
The FGR-HT is a leap forward for customers who need an industrial grade high speed Ethernet radio that operates in harsh environments and noisy RF conditions. Designed to the same high level of quality that our products are known for, the FGR-HT is a rugged and reliable solution that performs where other products fall apart. The FGR-HT product family supports Transparent Bridging of all Ethernet Portocols with 100% temperature testing from-40°C to +60°C. Radio Features - Fast Hopping - Provides superior interference rejection
- High Speed - Over the air data rate up to 867 Kbps
- Long Range - 40 miles at 614 Kbps with clear line of sight range, ability to extend further through Repeaters
- Error Free Communications - 32 bit CRC with automatic retransmission
- Industrial Grade Specifications - 100% tested for full performance from -40°C to +60°C
- Secure - Proprietary spread spectrum technology with 256 bit encryption
- Multiple Protocol Support - Encapsulates all Ethernet Potocols
- Better diagnostics - including signal level in dBm and transmit current
- Versatile - Master, Slave, and Repeater functions in a single radio
Applications - SCADA System Backbones
- Mobile Data
- Video Surveillance
- High Speed Backbones and Roaming Access
| Transmitter: | | Frequency Range | Frequency Range 902-928 MHz | Range, Line of Sight | Point-to-Point: 40 miles Range, at 614 Kbps with clear LOS Point-to-Multipoint: 15 miles Range, at 867 Kbps with clear LOS | Output Power | Output Power Up to 1 W (+30 dBm) | Modulation | Spread Spectrum GFSK | Occupied Bandwidth | 1.88 MHz | | Spreading Method | Frequency Hopping / FCC DTS | | Narrow Band | 611.2 KHz | | Hopping Patterns | 15 per band / 105 total | | Hopping Channels | Narrow Band = 41 | | Wide Band | 39 | | Hopping Bands 7 | user selectable | | Receiver: | | Sensitivity | -101 dBm for 10-6 BER at 614 kbs
-95 dBm for 10-6 BER at 867 kbs | | Data Transmission & Power: | | RF Bit Rate 867 Kbps PTP, 614 Kbps PTM | | Power Requirement: | | Operating Voltage | 6-30 VDC | | Transmit Current | MAX 550 mA | | Receive Current | 150 mA | | Idle Current | 70 mA | | General Information: | | Operating Temperature | -40°C to +60°C 100% full performance tested | | Dimensions | 165.1 mm L x 74.42 mm W x 58.64 mm H | | Diagnostics | Port Allows real time remote diagnostics and setup menu
HT is sold in enclosure only |
|
|
|
