CDQPrima Application Note #8

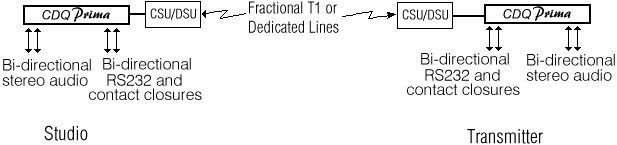

Application: Use your CDQPrima as a full fidelity STL.

Your CDQPrima can be used as a full time, full featured studio-to-transmitter link at a variety of bit rates to best suit your needs.


CDQPrima Application Note 8_0904


System Capabilities:Full CD quality stereo using as little as 192 kb/s, joint stereo with as little as 128 kb/s transmission systems

Bi-directional operation

Up to two ancillary RS232 data channels when using any 200 Series CDQPrima, one RS232 channel with any 100 Series CDQPrima

Bi-directional contact closures with optional relay cards

AES/EBU or S/PDIF digital audio input and output standard on all models except CDQPrima 110


System Requirements: Digital transmission facilities, such as fractional T1 or dedicated lines, 128 kb/s minimum for stereo, 256 kb/s recommended

2 CDQPrima codecs with appropriate interface and cables for connecting to CSU/DSU
2 CSD/DSU interface units
