Access 201N

Analog VoIP Gateway

Access201N, Analog VoIP Gateway, is a CPE device specifically designed for residential and small office, home office (SOHO) applications. It is a cost-efficient means for service providers to migrate their customers' traditional analog telephones and fax machines onto IP-based networks. Service providers can give their customers' all the benefits of emerging IP applications, without replacing their existing analog infrastructures.

Access201N is based on standards-based VoIP technology that is deployed in networks throughout the world. It is the only single-box solution that supports T.38 for analog-to-IP fax conversion, G.729 compression on both voice ports, supports all current VoIP signaling standards (ITU H.323, MGCP, SIP). It also employs embedded support for IEEE 802.1q VLAN tagging and 802.1p QoS for basic traffic engineering. Variable NAT enables Access201N to reside behind a NAT server or router and have an inbound (local) IP address while running VoIP sessions with other external VoIP devices.

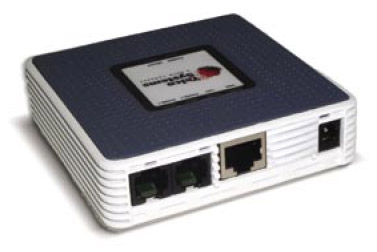

Each Access201N has two RJ-11 voice ports that support independent telephone numbers, and one 10/100BaseTX port. The voice ports interface directly with any analog telephone or fax machine. The 10/100BaseTX port provides connectivity to existing Ethernet LAN networks or broadband connections such as xDSL, cable modems, or fixed wireless solutions.

Download the Access 201N data sheet - PDF Version
